In summary
Canon has positioned the EOS 77D as an ‘entry level DSLR’ but it’s a cut above the very basic 18-megapixel EOS 1300D or even the 24-megapixel EOS 750D and 760D models. Thanks to the DIGIC 7 processor and Dual Pixel AF technology, the EOS 77D has more to offer than the older and cheaper models.
It also has a few advantages over the 800D that justify its higher price tag. They include a top panel data LCD, dual control wheels, support for time-lapse recording and an extra custom function.
It lags behind the EOS 80D in a few areas including weatherproof sealing, monitor size, frame coverage, and battery capacity.
Full review
Canon’s EOS 77D, which was announced in February 2017 sits between the EOS 80D and the slightly lower-featured model, the EOS 800D, which was announced at the same time. Both models have the same 22.3 x 14.9 mm CMOS sensor with 25.8 million photosites (24.2 megapixels effective) plus a built-in low pass filter and EOS integrated cleaning system. Another common feature across all three models is Dual Pixel CMOS Auto Focus support with a 45-point all cross type AF system in Live View mode.
Front view of the new EOS 77D, shown with its pop-up flash raised and the new EF-S 18-55mm f/4-5.6 IS STM kit lens fitted. (Source: Canon.)
We were able to review the camera with the new EF-S 18-55mm f/4-5.6 IS STM kit lens that will be bundled with one of the kit options. We have reviewed this lens separately.
Model Comparisons
The 77D fits between the 80D and 800D and all three cameras been designed for first time DSLR shooters. Image and video file sizes are the same across all three models and all support 14-bit raw file capture. The newer models have the latest DIGIC 7 processor, while the 80D has a DIGIC 6 chip. All three models have a single SD card slot that is UHS-1 compatible.
They all feature a guided interface to help users achieve effects like selective focusing and blur control with graphics displayed when the camera dial is set to the Av or Tv mode. The standard auto, manual or zone AF selection options are provided, along with AI focus, One Shot and AI Servo modes, predictive AF up to 8 metres and an AF lock.
Shooting modes are essentially the same, as are the Picture Styles, Creative Filters and Scene pre-sets. All three cameras rely on a 7560-pixel RGB+IR metering sensor and offer Evaluative (linked to all AF points), Partial (approx. 6% of OVF), Spot (approx. 3.5% of OVF) and Centre-weighted average patterns. Exposure compensation ranges from +/-5EV in 1/3 or 1/2 stop increments, with AE bracketing of three shots in 1/3 or 1/2 stop increments across a range of +/-3EV.
The built-in GN 12 flash can cover up to 17mm lens and supports a recycle time of roughly three seconds, with X-sync at 1/200 second. The cameras include auto and manual adjustment modes plus FE lock, 2nd curtain synch and a red-eye reduction lamp. Flash output is adjustable across a range of +/-3EV in 1/3 or 1/2 stop increments. An integrated Speedlite Transmitter enables optical control of remote Canon Speedlites.
All three models have built-in Wi-Fi and NFC connections but only the 77D and the 800D are equipped with Bluetooth wireless control that provides a low-power constant connection to facilitate image sharing via smart devices. Both the EOS 77D and EOS 800D are compatible with the new BR-E1 remote controller, which is Bluetooth based and has a five metre range from all directions. It can be used for capturing images and movies and operating focus and zoom functions.
Who’s it For?
Canon has positioned the EOS 77D as an ‘entry level DSLR’ but it’s a cut above the very basic 18-megapixel EOS 1300D or even the 24-megapixel EOS 750D and 760D models. Thanks to the DIGIC 7 processor and Dual Pixel AF technology, the EOS 77D has more to offer than the older and cheaper models.
It also has a few advantages over the 800D that justify its higher price tag. They include a top panel data LCD, dual control wheels, support for time-lapse recording and an extra custom function.
It lags behind the EOS 80D in lacking weatherproof sealing, having a smaller monitor and less frame coverage for its viewfinder. It also requires a lower shutter speed for flash synch and its shutter isn’t durability-rated. Its battery capacity is considerably less than the EOS 80D’s.
Build and Ergonomics
The build quality of the EOS 77D is up to standard for the camera’s price point. With a chassis is made from aluminium alloy and polycarbonate resin with glass fibre plus a cladding of polycarbonate resin with glass fibre and special conductive fibre, it feels reasonably solid for a largely plastic camera.
Front view of the EOS 77D with no lens fitted. (Source: Canon.)
Anyone familiar with Canon’s EOS control layout will immediately feel at home with the 77D. Just about all of the functions are in easy reach and adjustable when you’re framing shots with the viewfinder.
The front panel is dominated by the lens mount, which is chromed metal, and there’s a generous grip moulding, which should be comfortable for users with most hand sizes. The usual lens release button is located on the left hand side of the lens mount, with a small depth-of-field preview button below it on the edge of the mount moulding and a flash pop-up button above it.
A remote control sensor is embedded in the upper section of the grip moulding, which has the shutter button located at the front of its angled top. The main control dial sits right behind it. An LED is embedded in the body between the grip and the viewfinder moulding, where it doubles as a self-timer and red-eye reduction lamp.
Top view of the EOS 77D with no lens fitted. (Source: Canon.)
The top panel layout places the mode dial on the left hand side, with a LCD data panel to the right of the viewfinder and pop-up flash housing. In front of this panel are buttons for accessing AF point selection and ISO settings plus a backlighting button for the data panel.
Front and rear control dials make it easy to adjust settings like aperture and shutter speed on-the-fly and the ability to select controls on the Quick menu via the touch screen is great when setting the camera up to record video clips. The fully articulated monitor is useful if you want to shoot from normally tricky high or low angles.
Rear view of the EOS 77D with the monitor reversed onto the camera back. (Source; Canon.)
With the monitor taking up most of the rear panel, most of the controls are located to its right, where you’ll find the usual arrow pad plus quick control dial, which is surrounded by the playback and erase buttons, the Wi-Fi button and the multi-function lock switch. The Quick control menu button sits above this cluster with the AF-On, AE/FE lock and AF point selection/magnify buttons in the top right hand corner.
Above the monitor on the left hand side are the Menu and Info buttons. The power switch sits below the mode dial, which has a locking button to prevent inadvertent re-setting. The viewfinder is a pentamirror type with roughly 95% frame coverage, 0.82x magnification, a 19 mm eyepoint and an eye-sensor. All pretty typical for an up-market entry-to-mid-level camera.
The single SD card slot is located below a sliding cover on the right hand side panel, with a tiny access lamp LED embedded in the body just above it. On the left hand side panel are two rubber-covered compartments, one containing the microphone and remote control terminals and the other the USB 2.0 and HDMI ports.
The battery has its own compartment, as usual, in the base of the grip. Battery capacity is relatively low for a DSLR, with a CIPA rating of around 600 shots/charge with the viewfinder or 270 with Live View.
The camera also comes with Wi-Fi and NFC connectivity, along with a new low-power Bluetooth connection that can maintain an always-on link with a paired smart device. Wi-Fi is noted for draining battery power; Bluetooth does, too, but to a lesser degree.
Sensor and Image Processing
Like the EOS 80D and EOS 800D and the mirrorless EOS M5 and M6, the EOS 77D has an APS-C sized sensor with an effective resolution of 24.2 megapixels and a fixed optical low-pass filter. The new DIGIC 7 image processor has enabled the new camera to support and expanded ISO range that extends to ISO 51,200. However, continuous shooting is slower than the 80D’s, with a maximum frame rate of six frames/second (fps)
Four JPEG sizes (three of them with two compression levels) are provided for higher resolutions plus one lower resolution option. Compression rates for both JPEGs and CR2.RAW files are marginally higher than those applied in the EOS 80D.
Only one raw file option (recording at 6000 x 4000 pixels) is available and Large/Fine is the only JPEG option for RAW+JPEG capture. The table below provides a guide to typical file sizes for 3:2 aspect ratio images.
|
Quality |
Pixels |
File size |
Possible shots on 8GB card |
|
|
JPEG |
Large/Fine |
6000 x 4000 |
8.6MB |
950 shots |
|
Large/Normal |
3.9MB |
1840 shots |
||
|
Medium/Fine |
3984 x 2656 |
4.1MB |
1790 shots |
|
|
Medium/Normal |
2.0MB |
3480 shots |
||
|
Small 1/Fine |
2976 x 1984 |
2.6MB |
2730 shots |
|
|
Small 1/Normal |
1.3MB |
5260 shots |
||
|
Small 2 |
2400 x 1600 |
1.8MB |
3810 shots |
|
|
RAW |
RAW |
6000 x 4000 |
29.4MB |
170 shots |
|
RAW+JPEG |
RAW/Large |
6000 x 4000+ 6000 x 4000 |
37.0MB |
210 shots |
Movies are recorded in MPEG-4 format, using AVC.H.264 compression and a variable bit rate. The Basic Zone, Creative Zone and manual exposure modes are supported in movie mode. The table below shows the resolutions available, along with typical recording times and file sizes.
|
Movie resolution |
Frame rates |
Quality |
File size |
|
1920 x 1080 |
60/50 fps |
Standard |
431 MB/minute |
|
30/25/24 fps |
Standard |
216 MB/minute |
|
|
30/25 fps |
Light |
87 MB/minute |
|
|
1280 x 720 |
60/50 fps |
Standard |
184 MB/minute |
|
30/25 fps |
Light |
30 MB/minute |
|
|
640 x 480 |
30/25 fps |
Standard |
66 MB/minute |
|
Light |
23 MB/minute |
||
|
HDR Movie |
25 fps |
n.a. |
216 MB/minute |
|
Time-lapse movie |
25 fps |
n.a. |
654 MB/minute |
By default, Movie Servo AF is set as the focusing mode for shooting movies but photographers can also select the FlexiZone-Multi, FlexiZone-Single and Face+Tracking AF modes. ISO sensitivity is set automatically within a range of 100-12800, although it can be expanded to ISO25600, if required. The 77D supports the same Video Snapshots options as previous EOS cameras.
Playback and Software
Playback options are similar to the previous models and provide the option of using the touch screen as well as the button controls. The screen supports the standard tap, drag, pinch and spread gestures. Swiping with one finger moves the playback one image at a time; swiping with two fingers jumps through images at the intervals set in the menu. Two fingers are needed to respectively reduce and magnify images.
The software bundle has to be downloaded from the Canon website at http://www.canon.com/icpd. It contains the latest versions of the standard ‘Utilities’: Digital Photo Professional, EOS Utility (uploader) and Picture Style Editor for Windows and Macintosh PCs.
Instruction manuals for using the software can be downloaded from the same site. A printed user manual was supplied with the camera, along with a leaflet extolling the virtues of Canon’s irista image sharing service.
Performance
Not surprisingly, the results of our Imatest tests were similar to those we obtained from the EOS 80D and EOS M6 (which have the same sensor), particularly with respect to colour reproduction. As in those cameras, most hues were close to the ideal values, although saturation levels were quite high in the red and (to a lesser extend) orange hues.
The review camera just managed to meet expectations for a 24-megapixel APS-C sensor with JPEG files and only just exceeded expectations with CR2.RAW files with the optimal lens settings. The kit lens used for testing suffered from edge and corner softness, a common feature of kit lenses.
Resolution was relatively high for JPEGs at ISO 100 and ISO 200, particularly with converted raw files, but it slowly declined as sensitivity was increased. Raw files maintained a significantly higher resolution throughout the review camera’s sensitivity range with a gradual decline as sensitivity was increased. The graph below shows the results of our Imatest tests with both JPEG and CR2.RAW files.
Subjective assessments of image noise at high ISO settings in both long exposures and with flash shots showed them to be similar to equivalent shots taken with the EOS 80D, which we reviewed in April 2016, although exposures weren’t quite as accurate. We found little apparent noise in long exposures taken at up to ISO 3200, with noise and softening beginning to be visible at ISO 6400.
Both noise and softening were evident at ISO 12800 and ISO 25600 and by ISO 51200 the image had become granular-looking and riddled with artefacts. Colour saturation remained relatively high and shots taken at ISO 25600 were printable at up to 5×7-inch size before quality became questionable. We wouldn’t recommend using the ISO 51200 extension.
Flash exposures were consistent across the middle of the camera’s sensitivity range, although shots taken at ISO 100 were slightly under-exposed. Exposures remained relatively constant from ISO 200 to ISO 3200, after which shots became progressively over-exposed. By ISO 12800 shots roughly a stop over-exposed. Shots taken at ISO 25600 and ISO 51200 were between 1.5 and 2.5EV brighter. Contrast and sharpness were visibly reduced in flash exposures taken at the three highest ISO settings.
Auto white balance performance was similar to other Canon DSLRs we’ve reviewed with shots taken under incandescent and LED lighting remaining partly corrected, while shots taken with fluorescent lighting and with the camera’s built-in flash being almost cast-free. The pre-sets for incandescent and fluorescent lighting types slightly over-corrected but manual measurement delivered a neutral colour balance. Plenty of in-camera adjustments are provided for tweaking images as you shoot and white balance bracketing of +/- three levels in one-step increments across the blue/amber and magenta/green axes is available.
Autofocusing speeds were similar to those of the EOS 80D, with minimal delay in locking onto subjects in normal light levels when the viewfinder was used to compose shots. The review camera was faster to find focus in low light levels than the EOS M6, although lock-on speeds didn’t match those we found with the viewfinder in similar light levels.
The automatic AF area selection mode required bright lighting to keep track of moving subjects, particularly when they were moving across the frame faster than a standard walking pace.
When shooting movies, the Dual Pixel AF system was quick enough to lock onto most subjects but tended to become confused when new subjects entered the frame from any direction. Lags of up to a second were also common during panning and zooming, particularly in low-contrast lighting and with fast subject movements.
Video quality was similar to the clips we obtained from the EOS 80D, which isn’t surprising as this feature has barely changed. The slight differences between Standard and Light (IPB) settings were largely related to their different bit rates. Movies shot with the Light setting were also slightly slower to re-focus and more prone to glitches than those recorded with the Standard setting.
Aside from that, any differences between the HD 1080p and 720p video clips were largely related to the frame resolution and negligible when clips were viewed on a normal HD TV set. Audio quality was similar to that of the EOS 80D we tested. We didn’t detect any pick-up of operational noises when zooming and re-focusing while shooting movie clips.
For our timing tests, we used the same 16GB Panasonic SDHC Class 10 UHS-1 memory card as we used when testing the EOS 80D, to provide a speed comparison. Like the 80D, the review camera powered up almost instantly, but it took the AF system roughly half a second to be ready for shooting.
When the viewfinder was used for framing, we measured an average capture lag of 0.1 seconds, which was eliminated by with pre-focusing. In Live View mode, the capture lag averaged 0.2 seconds, reducing to a consistent 0.1 seconds with pre-focusing.
Shot-to-shot times averaged 0.42 seconds without flash and 0.8 seconds with, regardless of file format. Processing times were faster than we found with the EOS 80D. On average, it took just under a second to process each JPEG image, 2.2 seconds for a raw file and 2.7 seconds for each RAW+JPEG pair.
In the normal continuous shooting mode, the camera recorded 39 Large/fine JPEG frames in 6.4 seconds before beginning to slow down. This equates to just over six frames/second. Processing of this burst was completed within 10.8 seconds of the last frame recorded.
On swapping to shooting raw files, the camera slowed down after recording 19 frames in 3.0 seconds, which equates to approximately 6.3 frames/second. It took 20.5 seconds to complete the processing of this burst.
Roughly the same frame rate applied in RAW+JPEG format but the buffer capacity was limited to 18 pairs of shots, which were recorded in 2.9 seconds. Processing took roughly 23.6 seconds.
The 77D also offer a a low-speed continuous mode rated at 3.0 fps, which we didn’t test. Buffer clearing times depend on the speed of the card, which in this case was 90 MB/s read and 25 MB/s write. Slower cards will have longer clearing times and may limit the length of bursts.
Conclusion
Canon appears to be sticking with its nomenclature system for designating the capability levels of its consumer-focused DSLRs: the fewer numbers in the model name, the higher-featured the camera (at least for most of the world). So anyone looking for an entry/mid-level DSLR they can ‘grow into’ should find the EOS 77D meets most of their needs.
While the cheaper EOS 800D supports the same resolution for stills and video, there are features in the 77D which could make it a better choice for photographers aiming above basic entry level. For starters, the providing of two control dials makes it easier to adjust camera functions and will be valuable for those who prefer the P, Av, Tv and M shooting modes. The top panel LCD data display is another handy high-end feature.
Add in the intervalometer for time-lapse shooting, the bulb timer, extra custom settings, the AF-On button and the eye sensor that detects when your eye is at the viewfinder and switches displays accordingly. Having the power selector on the left hand side of the top panel on 77D also makes it easier to switch between stills and movie shooting modes ““ although it doesn’t stop you from triggering the movie mode inadvertently by pushing the lever too far.
DSLR cameras are generally best used for shooting stills rather than movies because you can only frame shots with the monitor, which can be difficult to ‘read’ outdoors in bright conditions. Movie enthusiasts will be better served by a mirrorless camera with an electronic viewfinder, which will run rings around ANY DSLR in usability, functionality and performance.
The EOS 77D has been on sale for roughly a month but already discounting has begun. If you shop around you can find the body at some reputable re-sellers for less than AU$1250 and the body plus EF-S 18-55mm f/4-5.6 IS STM lens for less than $1350.
It’s not really worth shopping off-shore for either the camera body or the body+lens kit. B&H, which promotes aggressively into the Australian market had the body for US$849 (equivalent to AU$1146 + $52 shipping) and the body plus EF-S 18-55mm f/4-5.6 IS STM lens at US$999 (AU$1348+ $52.64 shipping). Add GST to those prices and you’ll pay more in the long run, miss out on local consumer protection and have to wait for the equipment, which may (or may not) be delivered on time.
SPECS
Image sensor: 22.3 x 14.9 mm CMOS sensor with photosites (24.2 megapixels effective)
Image processor: DIGIC 7
A/D processing: 14-bit
Lens mount: Canon EF-S, EF
Focal length crop factor: 1.6x
Image formats: Stills: JPEG (Exif 2.30, DCF 2.0), CR2.RAW, M-RAW, S-RAW, RAW+JPEG; Movies: MP4 (Video: H.264 Intra frame / inter frame, Sound: Linear PCM / AAC, recording level can be manually adjusted by user)
Image Sizes: Stills ““ 3:2 aspect: 6000 x 4000, 3984 x 2656, 2976 x 1984, 1920 x 1280, 720 x 480; 4:3 aspect: 5328 x 4000, 3552 x 2664, 2656 x 1992, 1696 x 1280, 640×480; 16:9 aspect: 6000 x 3368, 3984 x 2240, 2976 x 1680, 1920 x 1080; Movies: 1920 x 1080 (59.94, 50 fps) inter-frame, 1920 x 1080 (29.97, 25, 23.98 fps) intra or inter frame, 1920 x 1080 (29.97, 25) lite inter-frame, 1280 x 720 (59.94, 50 fps) inter-frame, 1280 x 720 (29.97, 25) lite inter-frame, 640 x 480 (29.97 , 25) inter-frame
Image Stabilisation: Lens based
Dust removal: EOS integrated cleaning system
Shutter (speed range): Electronically-controlled focal-plane shutter (30-1/4000 second in 1/2 or 1/3 stop increments plus Bulb)
Exposure Compensation: +/-5 EV in 1/3EV or 1/2EV steps (+/-EV for movies)
Exposure bracketing: 2, 3, 5 or 7 Shots +/-3 EV 1/3 or 1/2 stop increments
Other bracketing options: WB (+/-3 levels in single level increments, 3 exposures, B/A or M/G bias selectable)
Self-timer: 2 or 10 seconds delay
Focus system: Dual Pixel CMOS AF system with 45 cross type AF points (45 f/5.6 cross-type AF points, 27 f/8 points (9 cross-type), centre point is f/2.8 and f/5.6 dual cross-type); Live View AF 9 AF points in fixed location on 7×7 grid
Focus modes: AI Focus, One Shot, AI Servo (AI Servo II algorithm); predictive AF, AF assist beam via flash, AF lock available
Exposure metering: 7560-pixel RGB+IR metering sensor; Evaluative, partial, centre-weighted average and spot metering patterns
Shooting modes: Scene Intelligent Auto (Stills and Movie), No Flash, Creative Auto, Portrait, Landscape, Close-up, Sports, SCN, Creative filters, P/A/S/M modes
Picture Style modes: Auto, Standard, Portrait, Landscape, Fine Detail, Neutral, Faithful, Monochrome, User Defined (x3)
Scene pre-sets: Night Portrait, Handheld Night Scene, HDR Backlight Control, Food, Kids, Candlelight
Image processing: Highlight Tone Priority, Auto Lighting Optimizer (4 settings), Long exposure noise reduction, High ISO speed noise reduction (4 settings), Multi Shot Noise Reduction, Auto Correction of Lens Peripheral illumination, Chromatic aberration correction, Distortion correction
Colour space options: Adobe RGB, sRGB
ISO range: Auto, ISO 100 to ISO 25600 with extension to ISO 51200 (ISO 100-12800 with expansion to ISO 25600 in movie mode)
White balance: AWB (Ambience priority, White priority), Daylight, Shade, Cloudy, Tungsten light, White Fluorescent light, Flash, Custom, Colour Temperature Setting. manual adjustment of +/-9 steps on Blue/Amber or Magenta/ Green axes
Flash: Built-in flash GN12 (ISO 100, meters), coverage up to 17mm focal length
Flash modes: Auto, Manual flash, Integrated Speedlite Transmitter; red-eye reeduction is available
Flash exposure adjustment: +/- 3EV in 1/2 or 1/3 step increments
Sequence shooting: Max. 6 frames/sec.
Buffer capacity: ‘Unlimited’ JPEGs, or 27 CR2.RAW files
Storage Media: SD, SDHC, SDXC cards (UHS-I compatible)
Viewfinder: Pentamirror with approx. 95% coverage, 19 mm eyepoint, fixed focusing screen, -3 to +1 dpt adjustment
LCD monitor: Vari-angle 3.0-inch, 3:2 Clear View II TFT touch screen with approx. 1,040,000 dots, Approx. 170-degree viewing angle, anti-reflection and anti smudge coating, 7 levels of brightness adjustment
Live View modes: Manual Focus (Magnify the image 5x or 10x at any point on screen), Autofocus: Dual Pixel CMOS AF (Face detection and Tracking AF, FlexiZone-Multi, FlexiZone-Single), Real-time evaluative metering with image sensor, Grid overlay (x3), Histogram, Electronic level
Playback functions: Single image with information (2 levels), Single image, index, (4 / 9 / 36 thumbnails), Slideshow, Histogram (brightness or RGB), Highlight alert, Playback zoom 1.5x – 10x, Erase/Protect
Interface terminals: Hi-Speed USB / Video output (PAL/ NTSC) (integrated with USB terminal), HDMI mini output (HDMI-CEC compatible), External microphone (3.5mm Stereo mini jack), Headphone socket (Stereo mini jack)
Wi-Fi function:
Power supply: LP-E17 Rechargeable Li-ion Battery Pack; CIPA rated for approx. 600 shots/charge with viewfinder, 270 shots/charge with Live View
Dimensions (wxhxd): 131.0 x 99.9 x 76.2 mm
Weight: Approx. 540 grams (including battery and memory card)
Distributor: Canon Australia; www.canon.com.au
TESTS

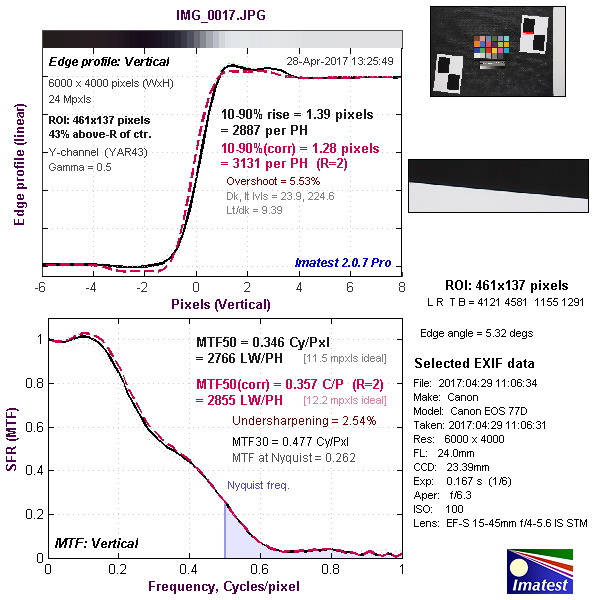

Based on JPEG files taken with the EF-S 18-55mm f/4-5.6 IS STM lens.

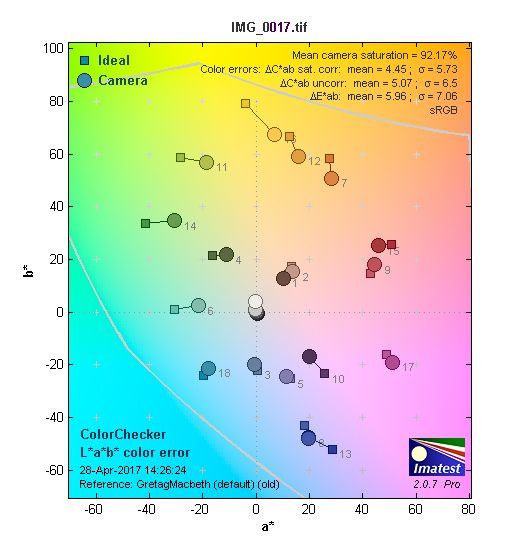

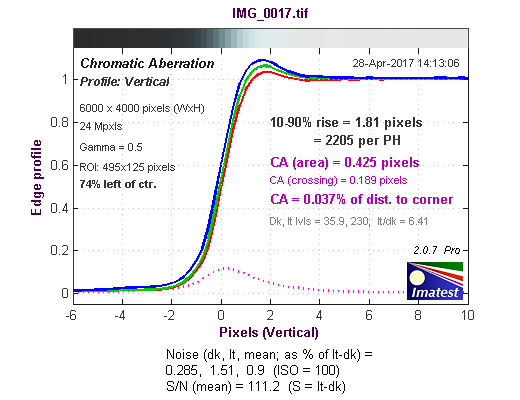

Based on CR2.RAW files converted into 16-bit TIFF format with Adobe Camera Raw.
SAMPLES
Auto white balance with incandescent lighting.
Auto white balance with fluorescent lighting.
Auto white balance with LED lighting.
Auto white balance with flash lighting.
ISO 100, 26mm focal length, 30 second exposure at f/4.5.
ISO 800, 26mm focal length, 10 second exposure at f/5.6.
ISO 6400, 26mm focal length, 5 second exposure at f/9.
ISO 12800, 26mm focal length, 5 second exposure at f/11.
ISO 25600, 26mm focal length, 1 second exposure at f/13.
ISO 51200, 26mm focal length, 1 second exposure at f/16.
Flash exposure at ISO 100; 55mm focal length, 1/60 second at f/5.6.
Flash exposure at ISO 800; 55mm focal length, 1/60 second at f/5.6.
Flash exposure at ISO 6400; 55mm focal length, 1/60 second at f/5.6.
Flash exposure at ISO 12800; 55mm focal length, 1/60 second at f/5.6.
Flash exposure at ISO 25600; 55mm focal length, 1/60 second at f/5.6.
Flash exposure at ISO 51200; 55mm focal length, 1/80 second at f/5.6.
ISO 160, 55mm focal length, 1/80 second exposure at f/5.6. (P mode, Auto ISO.)
ISO 500, 20mm focal length, 1/30 second exposure at f/5.6. (P mode, Auto ISO.)
ISO 1250, 18mm focal length, 1/30 second exposure at f/8. (Av mode, Auto ISO.)
ISO 200, 18mm focal length, 1/40 second exposure at f/8. (Av mode, manual ISO.)
ISO 25600, 31mm focal length, 1/125 second exposure at f/8. (Av mode, manual ISO.)
ISO 100, 18mm focal length, 1/10 second exposure at f/11. (Av mode, manual ISO.)
ISO 2500, 19mm focal length, 1/30 second exposure at f/4.5. (P mode, Auto ISO.)
ISO 200, 33mm focal length, 1/40 second exposure at f/8. (Av mode, Auto ISO.)
ISO 200, 55mm focal length, 1/60 second exposure at f/7.1. (Av mode, manual ISO.)
ISO 800, 41mm focal length, 1/60 second exposure at f/8. (Av mode, Auto ISO.)
ISO 1250, 55mm focal length, 1/80 second exposure at f/8. (Av mode, Auto ISO.)
Still frame from Full HD 1080 video clip taken at 50p.
Still frame from Full HD 1080 video clip taken at 25p.
Still frame from HD 720 video clip taken at 50p.
Still frame from HD 720 video clip taken at 25p.
Still frame from VGA video clip taken at 25p.
Additional image samples can be found with our review of the EF-S 18-55 f/4-5.6 IS STM lens.
Rating
RRP: AU$1509 (body only); AU$1629 (as reviewed with EF-S 18-55mm f/4-5.6 IS STM lens); US$900 (body); US$1050 (with EF-S 18-55mm f/4-5.6 IS STM lens)
- Build: 8.8
- Ease of use: 8.7
- Autofocusing: 8.8
- Still image quality JPEG: 8.7
- Still image quality RAW: 8.8
- Video quality: 8.6
