AF-S DX Nikkor 18-200mm f/3.5-5.6 G ED VR II Lens

      Photo Review 8.5
      -/
      leadpic_Nikkor_AFS_DX_VR18

      In summary

      An extended range zoom for Nikon APS-C camera owners who want a single lens that covers most popular focal lengths.The AF-S DX Nikkor 18-200mm f/3.5-5.6 G ED VR II is a minor redesign of a previous lens. It features a new zoom mechanism for reducing zoom creep (the lens slides forward when tilted). A new zoom lock switch has been added and the multi-layer Super Integrated Coating (SIC) has been improved to provide better image quality and contrast. Otherwise, it’s identical to the original Nikkor 18-200mm VR lens. . . [more]

      Full review

      -
      leadpic_Nikkor_AFS_DX_VR18

      The AF-S DX Nikkor 18-200mm f/3.5-5.6 G ED VR II is a minor redesign of a previous lens. It features a new zoom mechanism for reducing zoom creep (the lens slides forward when tilted). A new zoom lock switch has been added and the multi-layer Super Integrated Coating (SIC) has been improved to provide better image quality and contrast. Otherwise, it’s identical to the original Nikkor 18-200mm VR lens.

      -
      Nikkor_AFS_DX_VR18

      Side view of the AF-S DX Nikkor 18-200mm f/3.5-5.6 G ED VR II. (Source: Nikon.)

      Like its predecessor, this lens is designed as an all-in-one lens for cameras with APS-C-sized imagers. It provides a focal length range equivalent to 28-300mm on a 35mm camera on the Nikon D300S we used for this review. This is equivalent to an 11x zoom range, which is a big ask for any optical system and one reason why this lens is relatively slow.

      However, this has enabled Nikon to make this lens relatively compact, with a barrel length of only 96.5mm in at the 18mm setting and a diameter of 77mm (without the lens hood attached). Zooming out to 200mm extends the lens barrel by roughly 65mm. Overall weight is approximately 565 grams.

      Internal focusing means the front element doesn’t rotate during zooming, allowing angle-critical attachments to be used without requiring re-adjustment. Autofocusing is driven ultrasonically by a Silent Wave Motor, which is fast and barely audible in operation.

      -
      AFS_DX_VR18_200_diagram

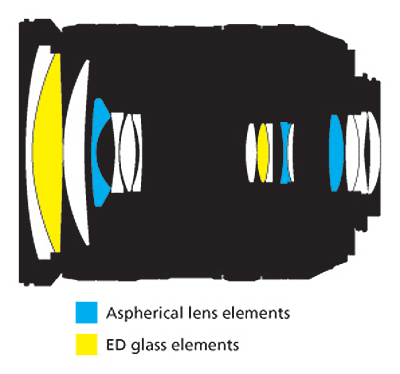

      The above diagram shows the internal structure of the lens and the position of the exotic glass elements. (Source: Nikon.)

      The optical design comprises 16 elements in 12 groups and includes three aspherical elements plus two ED (Extra-low Dispersion) elements. The front of the lens is threaded to accept 72mm diameter filters. A seven-bladed diaphragm closes to a circular aperture for attractive bokeh.

      The closest focusing distance is 50 cm at all focal lengths, which provides a maximum magnification ratio of 0.22x at the 200mm setting. It’s not true macro but provides some scope for close-up photography, where the relatively small maximum aperture the lens supports demand effective stabilisation.
      The VR II tag indicates a second-generation Vibration Reduction mechanism, which was a feature of the previous model. It employs two pairs of gyro sensors to detect pitch (vertical) and yaw (horizontal) movements.

      -
      AFS_DX_VR18_200_gyro-sensor

      The gyro sensors and electronics in the VR II stabilisation system. (Source: Nikon.)

      This information is sent to two voice coil motors, which shift certain internal elements to counteract the detected motion. Nikon claims users can shoot with shutter speeds roughly four f-stops lower than they could with an unstabilised lens.

      Two VR modes are provided: Normal and Active. The Normal mode is for shooting from a stationary base, while the Active mode is designed to provide compensation when shooting from a moving platform, such as a vehicle or ship. VR can also be switched off when the camera is tripod-mounted.

      Handling
      The review lens was an excellent match for the Nikon D300s body that was supplied for our review. It would be equally compatible with most other Nikon DX bodies, although perhaps a tad heavy for the D3000.

      The zoom ring is located towards the front of the lens barrel. Roughly 20mm wide, it has approximately 18 mm of ridged rubber grip with a trailing edge that carries engraved settings for the 18mm, 24mm, 35mm 50mm, 70mm 135mm and 200mm focal lengths. The zoom ring moves through almost half a turn across its range. Maximum and minimum apertures change as shown in the table below.

      Focal Length

      Maximum aperture

      Minimum aperture

      18mm

      f/3.5

      f/20

      24mm

      f/3.8

      f/22

      35mm

      f/4.2

      f/25

      50mm

      f/4.8

      f/29

      70mm

      f/5.0

      f/29

      135mm

      f/5.6

      f/32

      200mm

      f/5.6

      f/36

      Behind the zoom ring is a recessed distance scale with settings for 0.5, 1 and 3 metres plus infinity. The focusing ring lies behind this scale and has a 10 mm wide ridged rubber grip that rotates through roughly one third of a turn.

      Three slider switches are located on the side of the lens barrel behind the focusing ring, covering the M/A and M focusing modes, VR on and off and Normal and Active VR settings. The zoom lock is positioned further forward between the zoom and focusing rings. It clicks into place at the 18mm focal length setting to prevent zoom creep when the lens is pointed downwards.

      Performance
      On test, this lens was well matched to the sensor in the D300s in terms of colour rendition and contrast. However, it was found to suffer from noticeable barrel distortion at the 18mm focal length setting. This was largely resolved by 24mm but changed to pincushion distortion, which was obvious from the 70mm focal length on. Rectilinear distortion is not uncommon in extended-range zoom lenses, although it is seldom quite so obvious over so much of the zoom range.

      In our Imatest tests, resolution remained relatively high throughout the aperture and focal length range, although not quite up to the potential of the sensor in the D300s. Best results were obtained from the shorter focal lengths and wider aperture settings. Edge softening was detected at all apertures and focal length settings, being slightly more pronounced at the widest apertures and less in the middle of the focal length range than at its extremes. The graph below shows the results of our tests.

      -
      AFS_DX_VR18_200_Res-vs-FL-graph

      Lateral chromatic aberration was generally well-controlled and remained within the ‘negligible’ category at most aperture and focal length settings. No coloured fringing was detected in test shots. The graph below shows the results of our Imatest tests.

      -
      AF-S-Nikkor-18-200mm-CA-graph

      Vignetting at wide apertures was barely visible with most focal length settings, although at 200mm, darkened corners could be seen in test shots. Two aberrations we seldom encounter were revealed in the course of our testing. Both are likely to be a consequence of the extended zoom design. Spherical aberration was evident in the degree of focus shifting required as apertures were stopped down. Curvature of field was also quite evident in the review lens.

      Flare and ghosting were minimal unless the lens was pointed directly into the sun. Forced flaring resulted in starbursts, rainbow effects and circular patterns of various colours, as shown in the Sample Images section below. Contrast was not significantly reduced.

      Out-of-focus blurring was mostly smooth, although some outlining could be seen around the brightest out-of-focus highlights at the widest lens apertures. The VR stabilisation system was a competent performer, enabling us to use shutter speeds as slow as 1/20 second with the 200mm focal length.

      Buy this lens if:
      – You want an all-in-one lens with good build quality.
      – You’d like effective image stabilisation.
      – You’d like a lens that requires no readjustment when you fit polarisers and graduated filters.
      Don’t buy this lens if:
      – You want high resolution at all focal lengths, along with good edge-to-edge sharpness.
      – You need true macro capabilities.

      IMATEST GRAPHS
      (based on JPEG files from the Nikon D300s)

      -
      AFS_DX_VR18-200_DSC_0496_YBL77_ca
      -
      AFS_DX_VR18_200_DSC_0496_YAR29_cpp
      -
      AFS_DX_VR18-200_DSC_0496_YBL77_cpp

      SAMPLE IMAGES

      -
      Nikkor-18-200_DSC_0969_vignet-18mm

      Vignetting at 18mm f/3.5.

      -
      Nikkor-18-200_DSC_0976_vignet-200mm

      Vignetting at 200mm f/5.6.

      -
      Nikkor-18-200_DSC_0478_18mm

      18mm focal length; 1/100 second at f/10.

      -
      Nikkor-18-200_DSC_0479_24mm

      24mm focal length; 1/100 second at f/10.

      -
      Nikkor-18-200_DSC_0480_35mm

      35mm focal length; 1/125 second at f/10.

      -
      Nikkor-18-200_DSC_0481_50mm

      50mm focal length; 1/160 second at f/10.

      -
      Nikkor-18-200_DSC_0482_70mm

      70mm focal length; 1/200 second at f/10.

      -
      Nikkor-18-200_DSC_0483_135mm

      135mm focal length; 1/250 second at f/10.

      -
      Nikkor-18-200_DSC_0484_200mm

      200mm focal length; 1/320 second at f/10.

      -
      Nikkor-18-200_DSC_0591-flare

      Extreme contre-jour lighting; 1/800 second at f/14.

      -
      Nikkor-18-200_DSC_0485_flare

      Flare patterns; 1/80 second at f/11.

      -
      Nikkor-18-200_DSC_0590

      200mm focal length, 1/320 second at f/8.

      -
      Nikkor-18-200_DSC_0603

      200mm focal length, 1/320 second at f/9.

      -
      Nikkor-18-200_DSC_0605

      18mm focal length, 1/640 second at f/13.

      -
      Nikkor-18-200_DSC_0606

      200mm focal length, 1/400 second at f/10.

      -
      Nikkor-18-200_DSC_0620

      200mm focal length, 1/1000 second at f/5.6.

      -
      Nikkor-18-200_DSC_0626

      200mm focal length, 1/400 second at f/10.

      -
      Nikkor-18-200_DSC_0596

      200mm focal length, 1/640 second at f/13.

      -
      Nikkor-18-200_DSC_0653

      Close-up at 200mm; 1/20 second at f/5.6.

      -
      Nikkor-18-200_DSC_0651_bokeh

      Bokeh at 200mm; 1/500 second at f/5.6.

      -
      Nikkor-18-200_DSC_0640_VR-test

      Stabilisation test; 1/20 second at f/5.6.



      Specifications

      -
      leadpic_Nikkor_AFS_DX_VR18

      Picture angle: 76 degrees to 8 degrees
      Maximum aperture: f/3.5-5.6
      Minimum aperture: f/22-36
      Lens construction: 16 elements/12 groups (2 ED glass elements, 3 aspherical lens elements)
      Lens mount: Nikon F bayonet
      Diaphragm Blades: 7 (rounded)
      Focus drive: Silent Wave Motor
      Minimum focus: 50 cm
      Maximum magnification: 0.22x
      Filter size: 72mm
      Dimensions (Diameter x L): Approx. 77 x 96.5 mm
      Weight: Approx 565 grams
      Supplied accessories: LC-72 front lens cap, LF-1 rear cap, HB-35 bayonet hood, CL-1018 soft pouch



      Retailers



      CamBuy



      www.cambuy.com.au
      Digital cameras, lenses and accessories with 100% genuine Australian manufacturer’s warranties.
      Ph: (02) 9029 2219

      Camera House



      -
      CH_Logo120

      www.camerahouse.com.au
      Ph: 133 686
      The largest speciality photographic retail chain in Australia.

      Camera Pro



      www.camerapro.net.au
      CameraPro Pty Ltd
      Suite 607, 180 Queen St, Brisbane 4000
      Tel: 07 3333 2900
      Australian owned and run company based in Brisbane.

      Camerasdirect



      -
      CamerasDirect133

      www.camerasdirect.com.au
      Retailer of digital camera equipment and more.
      Secure online shopping and delivery across Australia.
      Ph: 1300 727 056

      Camerastore.com.au

      Camerastore.com.au
      Ph: 1800 155 067

      Camera-Warehouse



      -
      camera-warehouse120

      www.camera-warehouse.com.au
      Comprehensive range of digital cameras and accessories online (www.camera-warehouse.com.au) and an online print service (www.royalexpress.com.au).

      Digital Camera Warehouse



      www.digitalcamerawarehouse.com.au
      174 Canterbury Road 367 High Street
      Canterbury Northcote
      NSW 2193 VIC 3070
      Ph: 1300 365 220

      Electronics Warehouse



      www.electronicswarehouse.com.au
      1300 801 885
      Australian retailer of Vapex rechargeable batteries offering factory direct prices and fast, free shipping Australia wide.

      Greg Smith’s Photo Accessories



      www.dvdreamtime.com.au
      1800 50 80 82
      Big range of photographic accessories, Australia-wide shipping.

      Paxtons



      www.paxtons.com.au
      285 George St
      Sydney NSW 2000
      Ph: (02) 9299 2999

      Photographic Equipment & Supplies – Retail & Repairs. Click here for list of stores.

      Ted’s Cameras



      -
      Teds-Logo120

      www.teds.com.au

      1800 186 895
      Big range of cameras and photographic products with stores in most states and online.

      Rating



      RRP: $1299

      Rating (out of 10):

      • Build: 9.0
      • Handling: 8.5
      • Image quality: 8.0
      • Versatility: 9.0
      • OVERALL: 8.5
